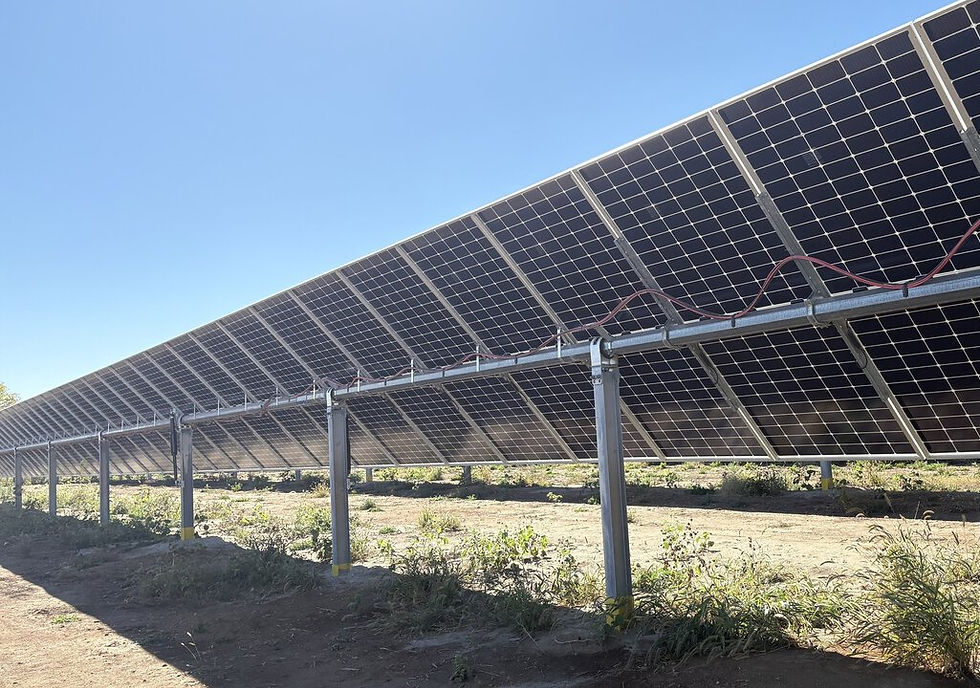

How to Choose Safer String Harnesses for Solar Projects
- Kanyarugano tanguy nolain
- 1 day ago
- 9 min read
In solar PV projects, a string harness is not just a cable assembly. It is part of the DC safety chain. A safer harness is one that is correctly rated, connector-compatible, well-crimped, sealed against moisture, mechanically secure, and supported by credible quality documentation.
If any of those elements are weak, the harness can become a source of heat, intermittent contact, water ingress, corrosion, or installation error.
The most reliable way to choose a safer solar string harness is to evaluate it by failure mode, not by appearance. Start with voltage and current ratings, confirm connector compatibility, inspect crimp and retention quality, and verify that the design is built for UV exposure, thermal cycling, and outdoor moisture. For projects that use fusing, the fuse rating must also match the electrical design of the string and the applicable protection strategy.
Key Takeaways
A safer solar string harness should do five things well: carry the expected current, withstand the expected voltage, maintain low contact resistance, resist water and UV damage, and stay mechanically secure after installation.
The biggest safety risks usually come from a small number of avoidable issues: mismatched connectors, poor crimping, undersized conductors, weak sealing, and corrosion-prone materials.
For procurement teams, the right question is not “Does it look robust?” but “Can this harness survive real field conditions without creating heat, fault, or maintenance problems?”
What a Safer Solar String Harness Actually Means
A solar string harness is a connectorized cable assembly used to interconnect PV modules, strings, combiner inputs, inline fuses, or related DC distribution points. In practice, it needs to perform as both an electrical component and an outdoor mechanical component.
“Safer” does not mean overbuilt or expensive. It means the harness is designed and assembled to reduce the probability of predictable failure modes such as:
excessive contact resistance
connector overheating
mismatch between mating parts
water ingress
insulation breakdown
poor strain relief
corrosion at terminals or contact points
damage during installation or maintenance
A well-chosen PV string harness supports system reliability because it keeps electrical losses low and maintains stable connections over time. A poorly chosen harness can look acceptable on day one and still fail under heat, sunlight, moisture, or vibration months later.
The Fast Answer: A Safer Harness Checklist
Use this as a first-pass filter before you compare price or lead time:
Verify that the harness is rated for the system’s voltage and current.
Confirm connector mating compatibility; do not assume “PV connector” means universal compatibility.
Check wire gauge and conductor sizing against real string current and installation conditions.
Review the crimp quality and assembly method.
Confirm strain relief and latch stability.
Check UV resistance, sealing, and IP rating for the site environment.
Look for corrosion resistance if the project is coastal, humid, or chemically aggressive.
Request documentation for qualification, traceability, and quality control.
If the harness includes fusing, verify the fuse amp rating and voltage rating as part of the full protection design.
If a supplier cannot answer these points clearly, the harness is not ready for serious project use.
1) Start with Electrical Ratings, Not Just Connector Type
Match voltage and current to the real operating condition
A harness must be rated for the actual DC environment it will see in service, not only the nominal system label. That includes the operating voltage of the string, the maximum circuit current, and any foreseeable fault condition relevant to the assembly. The objective is to preserve dielectric performance and avoid thermal stress at the contacts and insulation.
This is one of the most common selection mistakes: buyers focus on connector appearance while ignoring the electrical envelope. That can create avoidable risk, especially in larger PV arrays where strings run for long periods under high load.
Size the conductor for the string, not the brochure
Wire gauge selection for PV string harnesses should reflect real current, voltage drop expectations, ambient temperature, bundling, and installation pathway. A conductor that is technically “compatible” may still be a poor choice if it runs too warm or creates unnecessary loss.
In a safer design, conductor size is chosen to support:
the string’s continuous current
installation derating conditions
acceptable voltage drop
long-term thermal stability
This is where conductor cross-sectional area matters. A larger conductor is not automatically better; it must be appropriate for the application and the connector termination method. Undersized conductors can raise resistance and heat, while oversized conductors may create termination challenges if the contact system is not designed for them.
Treat fusing as a system decision, not an accessory
If the harness includes inline fusing or any overcurrent protection, the fuse must be selected as part of the electrical design, not as a generic add-on. The fuse rating, voltage rating, and interrupting capability need to suit the PV string and the downstream protection architecture.
A fused connectorized PV cable can improve safety in specific designs, but only if the fuse selection is coordinated with the string configuration and the expected fault scenarios. Poorly specified fusing can create nuisance trips, inadequate protection, or hidden incompatibility with the rest of the DC circuit.
2) Check Connector Compatibility Before Anything Ships
Do not mix connector families casually
PV connector compatibility is one of the highest-risk details in a harness decision. Similar-looking connectors are not always electrically or mechanically interchangeable. A mismatch can lead to poor contact pressure, elevated resistance, weak retention, or incomplete mating.
For a safer solar string harness, verify:
connector family and mating compatibility
approved pairings from the manufacturer
correct gender configuration
terminal and contact compatibility
secure latch engagement
Do not rely on visual resemblance. In solar systems, “looks compatible” is not a technical standard.
Look for secure mating, retention, and contact design
A reliable connector system should resist accidental separation and maintain stable contact over time. That depends on mechanical retention, latch stability, contact metallurgy, and surface treatment. These details matter because intermittent contact can generate localized heating and degrade reliability.
This is especially important in installations exposed to vibration, thermal expansion, and repeated service access. A harness that is easy to connect but easy to loosen is not a safe choice.
3) Evaluate Crimp Quality and Assembly Workmanship
Why crimping affects heat and long-term reliability
Even a high-quality cable and connector can underperform if the termination is poorly executed. Terminal crimp quality directly affects contact resistance, mechanical pull strength, and thermal stability. A weak or inconsistent crimp can create a high-resistance point that behaves like a small heater under load.
That is why safer harness selection should include a review of assembly method, tooling control, and quality inspection. Good suppliers do not treat crimping as a purely manual task. They treat it as a controlled process.
What good strain relief should do
Strain relief protects the termination from being pulled, bent too sharply, or repeatedly stressed in the field. Without it, mechanical load shifts to the conductor and contact point, which can accelerate failure.
A well-designed harness should:
prevent load transfer to the crimp
manage bend radius near the connector
reduce movement at the termination
keep the cable stable during installation and service
If the assembly flexes too freely at the connector body, that is a warning sign. Good strain relief supports both safety and lifespan.
4) Demand Strong Environmental Protection
UV resistance, insulation integrity, and polymer aging
Outdoor solar systems expose harnesses to sunlight every day. That means the cable jacket, connector housing, seals, and overmold materials must resist UV aging of polymers and preserve insulation integrity over time.
A safer harness uses materials that are intended for outdoor PV duty, not generic electrical use. In practice, that means checking:
UV stabilization
weather resistance
heat resistance
insulation durability
long-term surface degradation risk
Sunlight does not just fade color. It can slowly weaken polymers, reduce flexibility, and compromise the outer protective layer if the materials were not selected correctly.
Water ingress, sealing, and IP rating
Moisture is one of the most underestimated risks in PV interconnections. Water ingress can increase corrosion, reduce insulation performance, and create intermittent or unstable behavior at the connector interface.
For that reason, a safer harness should have clear protection against water entry through:
sealing elements
gaskets
overmolding
secure connector fit
appropriate IP rating for the application
The right IP level depends on the site environment, installation method, and exposure profile. But the principle is simple: if the harness will live outdoors, the sealing system must be designed for outdoor reality, not indoor assumptions.
Corrosion resistance in coastal or humid sites
In coastal projects, humid regions, and chemically aggressive environments, corrosion resistance becomes a selection criterion, not a bonus feature. Corrosion can affect contacts, conductors, and metal interfaces, especially where different materials meet.
Pay attention to:
terminal materials
plating or surface treatment
gasket quality
housing material stability
resistance to galvanic corrosion
Galvanic corrosion is a particular concern where dissimilar metals and moisture coexist. A harness that works well in a dry inland site may perform very differently in salt-laden air.
5) Ask How the Harness Handles Real Field Conditions
Thermal cycling and hot spot risk
PV systems expand and contract repeatedly as temperatures change. That puts stress on connectors and terminations. Over time, thermal cycling can expose weak crimps, poor retention, or marginal materials.
One of the key reasons to choose a safer harness is to reduce hot spot risk. Localized heating often starts small: a slightly loose contact, a contaminated mating surface, a poor crimp, or a degraded seal. Over time, that can become a maintenance issue or a safety issue.
Mechanical retention and vibration
A harness must stay put after installation. Wind, module movement, service access, and cable routing all create mechanical stress. Good mechanical retention helps the connector remain engaged and stable through those conditions.
When evaluating a product, ask:
Does the latch hold securely?
Is the connector body robust enough for repeated handling?
Does the cable exit remain stable under load?
Is there evidence of secure assembly under field conditions?
A connector that is too easy to disengage may save time during installation but create risk later.
Cable routing and bend management
The safest harness is also the one that can be installed without compromise. If a cable is forced into an awkward route, bent too sharply, or left under tension, the assembly can fail faster.
Check that the harness supports:
clean routing
proper bend radius
no forced twist at the connector
minimal strain on the termination
clear separation from sharp edges and abrasion points
Installation quality is part of harness safety. Even a well-designed assembly can be made unsafe by poor routing.
6) Review Documentation and Quality Evidence
Type testing, qualification, and traceability
A reliable supplier should be able to explain how the harness was qualified. You do not need a mountain of paperwork, but you do need credible evidence that the design and production process are controlled.
Ask for documentation that covers:
qualification or type testing
material and component identification
traceability
process control
inspection criteria
compliance with relevant IEC / UL connector requirements
If a supplier cannot show how the harness was validated, you are taking on unnecessary risk.
What to request from a supplier
Before approving a harness for a project, request:
electrical ratings
conductor specification
connector family and mating compatibility
material data for housing, seals, and jackets
crimping process details
ingress protection information
operating temperature range
evidence of UV and environmental suitability
quality assurance or inspection summary
A good supplier answers these questions quickly and consistently. That is often a better signal than marketing language.
Common Mistakes That Make a Harness Less Safe
The most common mistakes are also the easiest to avoid:
choosing by price alone
mixing incompatible connector families
ignoring conductor sizing
accepting weak crimp control
underestimating water ingress
using indoor-rated components outdoors
overlooking corrosion risk
assuming all PV connectors are interchangeable
skipping documentation review
treating fusing as a generic add-on rather than a design decision
In other words, most unsafe harness decisions are not dramatic errors. They are small compromises that stack up.
How to Compare Two Harness Options Without Guessing
When two products look similar, compare them using the same questions:
Are the voltage and current ratings clearly stated?
Are the connectors explicitly compatible with the intended mating parts?
Is the conductor size appropriate for the application?
Does the termination quality appear controlled and repeatable?
Is the sealing system designed for outdoor use?
Is the material set suitable for UV, heat, and moisture exposure?
Is the documentation complete enough to support procurement and installation?
If one option is cheaper but weaker in documentation, sealing, or connector control, it is usually not the safer choice.
Final Selection Framework
If you need a simple decision rule, use this:
Choose the harness that best balances electrical rating, connector compatibility, termination quality, environmental resistance, and documented quality control.
That is the safest way to specify a PV string harness for long-term reliability. The right product should reduce installation ambiguity, maintain low contact resistance, resist outdoor degradation, and remain mechanically secure after commissioning.
For solar projects, safety is rarely about one dramatic feature. It is about the accumulation of small correct choices: the right conductor, the right connector, the right crimp, the right seal, and the right documentation.
If you are buying for a project, the safest harness is usually the one that makes the fewest assumptions.
FAQ
1) What should I look for in a PV string harness first?
Start with voltage and current ratings, connector compatibility, conductor size, and crimp quality. Those four factors determine most of the safety and reliability risk.
2) Why do PV connectors overheat?
Most overheating issues come from elevated contact resistance, poor crimping, weak mating compatibility, contamination, or mechanical loosening over time.
3) How do I reduce water ingress in solar string connectors?
Use properly sealed connectors, correct mating parts, outdoor-rated materials, and assemblies with appropriate IP protection for the installation environment.
4) How do I avoid connector mismatch issues in solar?
Use only approved connector pairings from the manufacturer and verify the connector family before assembly. Do not rely on visual similarity.
5) Is a fused string harness always safer?
Not automatically. A fused harness can improve protection when the fuse rating and voltage rating are correctly coordinated with the PV string design. Poorly specified fusing can create new problems.
6) What is the most overlooked risk in string harness selection?
Workmanship. A well-rated harness can still fail early if the crimp, seal, or strain relief is poor.
