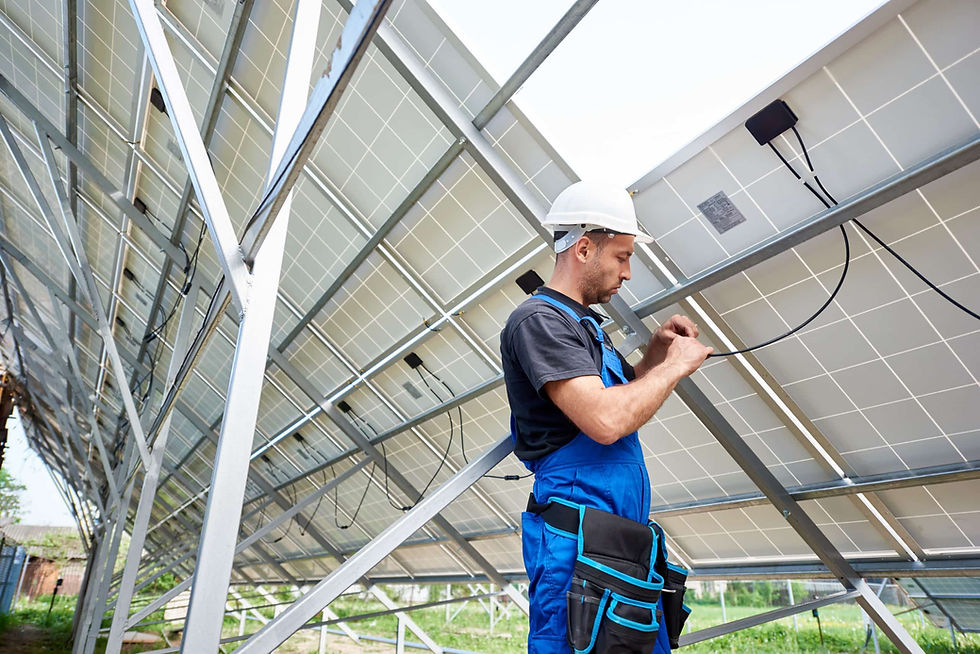

From Connection to Performance: PV Solar Harnesses for Next-Generation Solar Equipment

The Foundation of a Solar System: Defining Solar Harnesses and Strings

The terminology in the solar industry can sometimes be a source of confusion. Clarifying the roles of Solar harnesses and strings is the first step toward appreciating their significance in system design and operation.

What Are PV Solar Harnesses?

A PV solar harness is a pre-fabricated, engineered solution designed to connect multiple solar panels and facilitate the flow of electricity to the next stage of the system, such as a combiner box or inverter. Constructed from specialized, purpose-built cables and connectors, these harnesses are a core part of the DC collector system. They are augmented with essential components like molded junctions and fuses, all of which must be robust enough to handle the electrical load and withstand the harsh environmental conditions they will encounter. The quality of a harness is paramount, as it must be reliable and safe in the face of extreme temperatures, UV radiation, and moisture over decades of operation.

Types and Components of PV Solar Harnesses

Harnesses are not a monolithic product but rather a family of solutions with various configurations and components tailored for specific applications. Their construction integrates several key elements to ensure optimal performance and safety.

A typical PV harness comprises:

• Cables: These are the conductors that carry the electrical current. They are made from high-quality, weather-resistant materials, such as cross-linked polyethylene (XLPE) and thermoplastic elastomers (TPE), chosen for their superior insulation and jacketing properties that protect against environmental degradation.

• Connectors: Connectors, such as the widely-used MC4 type, are the male and female electrical couplers that provide a secure, weatherproof, and user-friendly connection between panels and other system components. These connectors are designed to be effortless to connect and disconnect without special tools in most installations.

• Fuses: In-line fuses are integrated into the harness to protect the system from overcurrent conditions, ensuring a long-lasting and stable solution.

• Junctions: T- and Y-junctions are utilized to combine multiple strings or panels, providing a simple parallel or serial-parallel connection point.




A notable advancement in the field is the development of overmolded PV harnesses. These advanced, custom-designed harnesses feature fuses and junctions that are chemically bonded to the wire insulation, a critical design feature that prevents shrink-back issues and enhances long-term durability.

PV Harness vs. PV String: A Crucial Distinction

A PV string is an electrical configuration, specifically a series of solar panels connected together. In this arrangement, the positive terminal of one panel is wired to the negative terminal of the next, and so on, creating a chain. This connection method causes the voltage of each panel to accumulate, while the current remains the same. The total output voltage of the array is the sum of the individual panel voltages.

A PV harness, on the other hand, is the physical product and engineered solution that enables the creation of a PV string and facilitates the flow of electricity to the rest of the system. It is the robust cabling, connectors, and junctions that physically build the electrical string. The quality of this physical harness directly determines the performance and integrity of the electrical string it creates. Therefore, the harness is not just a cable; it is the critical infrastructure that brings the electrical concept of a string to life. This distinction underscores why the physical quality of the harness is so fundamental to the overall success of the installation.

The Critical Role of Quality: Why Your Harness Matters

The durability and safety of a solar installation are not determined by the lowest-cost components. The choice of a PV String harness can have profound effects on the system's performance, longevity, and safety, often in ways that are not immediately apparent.

Elevating System Performance: Minimizing Power Loss

A key metric for the performance of a PV string harness is its ability to minimize power loss over the considerable length of cable.

• The quality of the materials and design, particularly the overmolding and bonding, are directly linked to this metric.

• When a harness has poorly bonded connections, it becomes susceptible to moisture ingress, which can compromise the performance of integrated fuses and junctions.

• This leads to increased electrical resistance at the contact points, generating heat and causing a voltage drop.

These inefficiencies result in a reduced energy yield for the entire system, undermining the financial return on the initial investment.

By contrast, high-quality harnesses feature precision-engineered designs that provide the lowest contact resistance, ensuring that the maximum amount of energy generated by the panels is transmitted to the inverter.

Ensuring Longevity and Durability

PV harnesses are constantly exposed to the elements, including extreme temperature cycles, UV radiation, humidity, and precipitation. To meet the expected lifespan of a solar array, a good harness should have a design life of 40 years. The durability of a harness is directly dependent on the quality of its construction and materials.

Inferior harnesses often rely on mechanical compression or simple heat shrink tubing to seal connections.

• These methods are highly vulnerable to environmental factors, which can cause the cable jacket to shrink along the length of the harness.

• When the jacket recedes, it can expose the internal copper strands, creating a serious safety hazard and a point of failure.

• This can lead to arcing, particularly in dry, grassy environments, which presents a significant fire risk.

Mitigating Safety Risks

Fire safety is a major consideration in any electrical installation.

• High-quality harnesses are a fundamental part of a safe system, providing protection from fire and electrical shock.

• These harnesses should be manufactured with flame-retardant properties and comply with international and regional safety standards such as UL and IEC.

• Connectors are also a critical safety feature.

• They must have a high degree of ingress protection (IP rating) to prevent dust and water from entering the connection point.

• This protection is crucial to preventing arcing, short circuits, and power losses.

• Additionally, a secure locking mechanism on connectors prevents accidental disconnections and provides a stable and reliable connection, further reducing the risk of arcing and fire.

PV Harnesses in Modern Solar Architectures: String vs. Microinverter Systems

The Harness in a String Inverter System

In a traditional string inverter system, multiple solar panels are wired together in a series to form a "string". This DC power is then sent to a single, centralized string inverter, typically located in a shaded, well-ventilated area near the main electrical panel. The harness's primary function in this setup is to create these high-voltage DC series connections and carry the power from the rooftop to the inverter.

The Harness in a Microinverter System

Microinverter systems utilize Module-Level Power Electronics (MLPEs), where each individual solar panel is paired with its own microinverter. In this architecture, the DC-to-AC power conversion happens directly at the panel. The harness's role is different, as it connects the microinverters, which then transmit low-voltage AC power to the central electrical system.

Choosing the Right Harness for Your Inverter Type

The choice between a string and microinverter system is a nuanced one that depends on a variety of site-specific factors.

• It is not a matter of one being inherently superior.

• The decision is based on a trade-off between:

  • Upfront costs

  • Long-term performance

  • Ease of maintenance




Microinverter vs. String Inverter System Comparison

Feature	Microinverter System	String Inverter System
DC-to-AC Conversion	At each panel	At a central location for the string
Performance with Shading	Panel-level optimization reduces impact	Performance of the entire string can drop
Installation Complexity	More components and wiring on the roof	Simpler installation with one central unit
System Monitoring	Panel-level data for detailed insights	System-wide monitoring; harder to isolate problems
Maintenance Location	On the roof; requires panel removal	Ground-level access for easier service
Cost (Upfront)	Generally higher due to one inverter per panel	More budget-friendly with a single unit
Safety	Lower-voltage DC on the roof	High-voltage DC is sent from roof to inverter
System Expansion	Easily expandable by adding a single panel/inverter	Harder to expand; may require a new inverter

The Path to a Perfect Installation: A Guide to PV Harnesses

The Importance of Proper Installation

Traditional solar installations often require installers to strip wires and crimp connectors on-site. When this process is not performed with precision, it can lead to a host of issues, including loose connections, increased resistance, and overheating. These problems, while seemingly minor, can escalate into costly system failures and safety hazards. The high percentage of issues underscores that the traditional wiring process is fundamentally susceptible to reliability flaws. The most effective way to mitigate this is to remove the "field-made" element from the equation.

Best Practices for Traditional PV Harness Installation

For those installations that still require on-site wiring, following meticulous best practices is non-negotiable. It is imperative to use the correct specialized tools, such as wire strippers, crimping tools, and connector assembly tools.

The steps for adding solar connectors to PV wires typically involve:

1. Stripping the wire: Strip the cable insulation to the correct length to expose the wire for crimping.

2. Crimping: Use a proper crimp tool to attach the male or female connector to the stripped wire, ensuring a solid, secure connection.

3. Inserting and Locking: Insert the crimped cable into the connector housing. A distinct "click" sound indicates that the connection is secured and locked in place.

4. Sealing: Secure the rubber washer and tighten the nut to create a weatherproof seal, preventing water ingress and protecting the connection from damage.

The Plug-and-Play Revolution: Modular Harness Systems

The high rate of on-site wiring failures has driven innovation toward pre-fabricated, modular solutions. These "plug-and-play" systems utilize off-the-shelf, factory-assembled components, such as in-line fuses, branch connectors, and jumpers. The use of factory-made, quality-controlled components and advanced overmolding techniques drastically reduces the risk of human error and product failure, directly addressing the core issue identified in industry reports.

The advantages of these modular systems extend beyond reliability:

• Ease of Installation: The ready-to-use design speeds up installation, improves quality, and reduces potential failure risks, which leads to a lower total cost of ownership (TCO).

• Simplified Maintenance: Replacement parts are readily available off-the-shelf and can be easily stored on-site. A key benefit is that a non-expert can replace a faulty component, reducing downtime and maintenance efforts.

• Adaptability and Flexibility: The modularity of these systems facilitates modifications or extensions throughout the PV system's lifecycle, allowing for easy scaling or changes to the installation.

Maintaining and Troubleshooting Your Solar Wiring

Long-term solar system performance hinges on proactive maintenance and a clear understanding of potential points of failure. The most common issues with solar wiring are often simple to diagnose if one knows what to look for.

Common PV Harness and Connector Issues

• Loose Connections: This is a primary cause of system underperformance and safety hazards. They can be caused by improper installation, vibration, or natural degradation of materials over time. Signs of a loose connection include heat damage, discoloration, melting, or a burning smell near the connection points.

• Damaged Cables: Cables can be compromised by mechanical stress, such as pulling or bending, or by exposure to extreme temperatures or corrosive substances. Signs of damage include exposed or frayed wires, cracks in the insulation, or evidence of burning.

• Corrosion: Rust or discoloration on metal connectors is a sign of corrosion. This increases electrical resistance, which generates heat and reduces system performance and longevity.

• Water Ingress: When connectors' seals fail, moisture can infiltrate the system, leading to electrical shorts or ground faults. This compromises the performance of the fuses and junctions and can cause corrosion, escalating the risk of failure and fire.

Troubleshooting Guide: When Performance Drops

Troubleshooting PV System Wiring & Harness Issues

Problem/Symptom	Possible Cause	Diagnostic Steps	Recommended Action
Reduced Power Output	One or more strings or modules underperforming	Visually inspect panels for dirt, shade, or physical damage. Check the inverter display for error codes.	Clean panels; remove obstructions.
Reduced Power Output from a String	Loose connections, faulty module, or polarity issues	Use a multimeter or clamp meter to check voltage and amperage at the combiner box for each string. Check for reversed polarity.	Tighten all connections. Replace faulty module or harness. Correct polarity.
Signs of Overheating	Loose connections or damaged insulation	Visually inspect all wiring and connectors for discoloration, melting, or a burning smell. Use an infrared thermal camera for hot spots.	Turn off the system immediately. Replace the faulty connector or cable.
Intermittent Power Output	Loose or corroded connections	Visually inspect all connections. Use a multimeter to check for continuity and resistance. Check for signs of rust or water ingress.	Clean and dry connections; replace corroded components.

The Future of PV Harnesses

Innovation in Materials and Design

Manufacturers are constantly developing new materials and design techniques to improve efficiency and longevity.

• This includes the use of advanced polymers with higher RTIs (Relative Temperature Index).

• More robust overmolding techniques ensure that components can withstand prolonged exposure to heat and harsh environments.

• These innovations contribute to the goal of a 40-year system life.

• This focus on durability reduces the total cost of ownership by minimizing the need for premature replacements and repairs.

Smart Connectors and Integrated Solutions

The next frontier for PV harnesses involves integrating intelligence into the wiring itself.

• Analysis of modern systems reveals the emergence of "smart grid solutions" that can detect faults and weak connections within the network.

• These systems enable real-time monitoring and diagnosis, providing valuable data on the health of the entire array.

• The future of PV harnesses will likely see them become even more integral to the solar ecosystem, providing:

  • Granular data on performance

  • More efficient maintenance

  • Enhanced system reliability

Conclusion: The Unseen Connection to Lasting Performance

In the grand scheme of a solar energy system, the PV harness is often a component that goes unnoticed until a problem arises.

• As this report demonstrates, its quality and proper installation are directly linked to the safety, efficiency, and financial return of the entire solar energy investment.

• The distinction between a conceptual "string" and a physical "harness" is crucial, highlighting the importance of the engineered component that builds the electrical connection.

• Choosing a high-quality harness, from its materials and overmolding to its compliance with safety standards, is a strategic decision that:

  • Mitigates risks

  • Maximizes energy yield
