String PV Harness Series T | 20+ Years of Manufacturing Experience

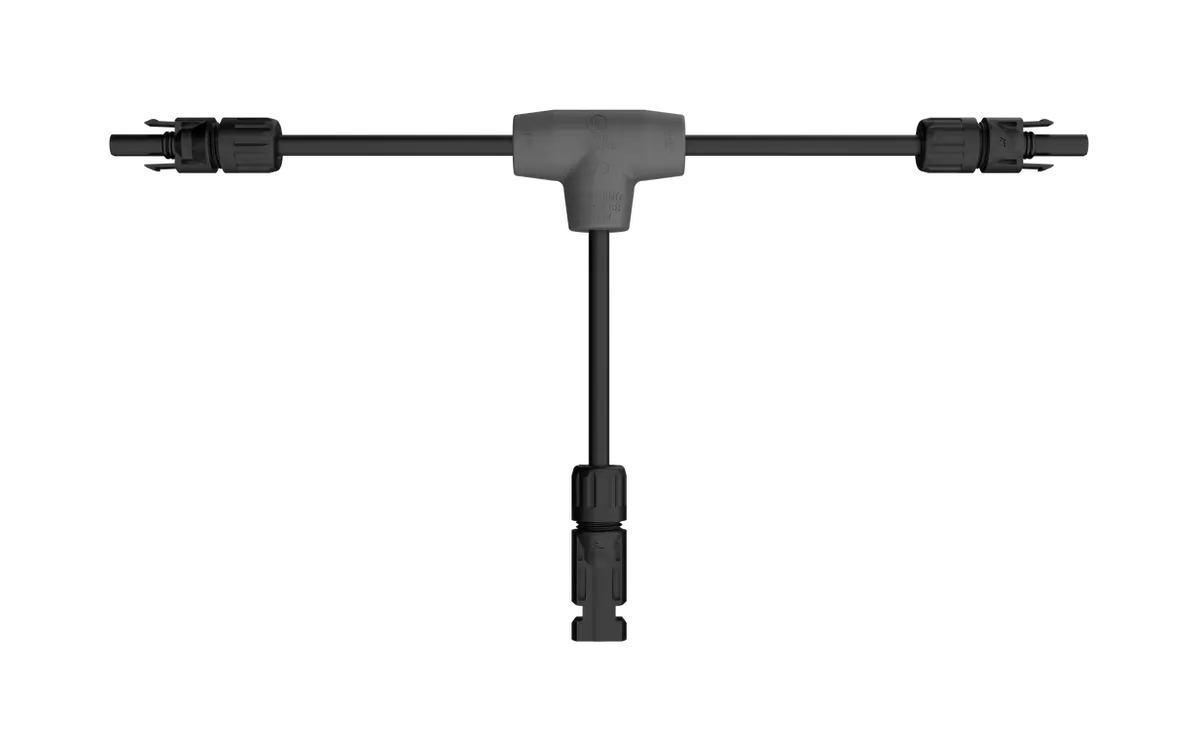

String PV Harness
Key Features of String PV Harness Series T
Application
-
Wiring Solar Panels in Parallel
-
Rooftop and Commercial Installations
-
Large-Scale Utility Projects
-
Specific String Configurations
Construction
-
Main connector: Male and female connectors,
-
Branch connector: T-shaped branch, each branch featuring a standard male or female connector
-
Waterproof Seals: Waterproof and dustproof functionality
-
Feature: Dual-layer injection molding process for enhanced sealing
Options
-
Cable size from 6 AWG to 12 AWG
-
2kV Photovoltaic Copper Wire:#12，#10，#8，#6
-
Inline-fuse options: 1 A-65 A,Brands: Littelfuse,Adler,etc.
Overmold
-
T Kits and Fuseholders available (IP68 Rated)
Connector
-
Multi-brand connectors compatibility: MC4, TS4, JM608, PV-ZH202B, S418, etc.
-
Connector Multi-brand connectors compatibility: MC4, TS4, JM608, PV-ZH202B, S418, etc
Standards
-
UL9703
Factory-direct Solar Harness Supplier China
1500kV PV System String Harness Series T – Conductivity, Reliability, Safety, Redefined for Solar
Plug-and-Play Solution
The JUNDA-SOLAR Series T is designed to save you time.Its innovative, pre-assembled, and plug-and-play
Reliability and Longevity
Harnesses are engineered to resist environmental stressors such as UV radiation, extreme temperatures
Globally Certified
Trust and compliance are paramount in the solar industry, especially when targeting international markets
A Tailored Fit for Every Solar
With customizable lengths, connector types, and configurations, you can achieve a tailored wiring solution
Optimizing Power Transmission
The Series T is engineered with high-conductivity materials and a low-resistance design
Related Products
NEW ENERGY HARNESS ON REEL
Pre-assembled harnesses delivered on reels for easy handling and installation
Reduces onsite labor, speeds up deployment, and minimizes wiring errors
Our harness-on-reel solutions are engineered to simplify large-scale solar installations. Delivered pre-assembled and packaged on reels, they enable faster deployment, reduced labor costs, and error-free connections. Ideal for utility and commercial solar projects, they ensure reliable performance with streamlined installation.
SOLAR TRUNK BUS
Centralized cabling that simplifies system design and reduces installation time
Reliable, scalable solution for utility and commercial solar projects
Our trunk bus solutions are designed to optimize solar power distribution by consolidating multiple connections into a single, efficient pathway. This reduces wiring complexity, minimizes installation errors, and ensures safe, reliable performance across large solar installations.
PV COMBINER BOX & PV DISCONNECT BOX
PV Combiner Box:
Streamlines solar string connections, improves system safety, and reduces installation complexity.
PV Disconnect Box:
Provides reliable circuit isolation and protection, ensuring safe maintenance and operation.
Our combiner and disconnect boxes are designed to optimize solar power systems with safe, efficient, and long-lasting performance. The combiner box centralizes connections for better efficiency, while the disconnect box ensures secure isolation and protection. Together, they deliver dependable control and safety for solar projects of all sizes.
Q1: What makes the Series T series harness the ideal choice for large-scale photovoltaic systems?
The Series T is specifically engineered for high-voltage photovoltaic systems, offering a robust and reliable solution that minimizes the risk of system failures. Its unique design and high-quality materials ensure long-term durability and performance, making it the preferred choice for commercial and utility-scale projects.
Q2: How does the Series T series harness optimize system efficiency and reduce installation time?
The Series T harness features a plug-and-play design that simplifies the installation process, significantly reducing labor time and costs. Its precision-engineered connectors ensure a secure and low-resistance connection, which maximizes power transfer and overall system efficiency, contributing to a higher energy yield.
Q3: Is the Series T series harness compatible with different types of solar panels and inverters?
Yes, the Series T series harness is designed for broad compatibility. We offer various connector options that integrate seamlessly with a wide range of industry-standard solar panels and inverters. For specific compatibility inquiries, please refer to the technical data sheet or contact our product specialists.
Q4: What are the key safety features of the Series T photovoltaic system series harness?
Safety is paramount in the design of the Series T series harness. It is constructed with flame-retardant and UV-resistant materials to withstand harsh environmental conditions.
FAQ
Q5: How does the Series T series harness perform in extreme weather conditions?
The Series T is rigorously tested to perform in diverse and challenging climates. Its robust construction and high-grade materials are resistant to extreme temperatures, moisture, and UV degradation. This ensures a consistent and reliable performance, even in the most demanding environments.
Q6: Can the Series T series harness be customized for specific project requirements?
Yes, we offer customization options for the Series T series harness to meet the unique needs of your project. This includes varying lengths, different connector types, and specialized configurations.
Q7: What is the typical lifespan and warranty for the Series T photovoltaic system series harness?
The Series T is built for longevity. It comes with a 15-year product warranty, guaranteeing its performance and reliability over a significant period. The robust construction and high-quality materials ensure a long operational lifespan, reducing the need for maintenance and replacements.
Q8: How do I get a quote or place an order for the Series T series harness solutions?
You can request a quote by filling out the contact form on our website or by calling our sales team directly. Please provide details about your project, including the required quantity and any specific customization needs, and our team will provide you with a detailed quote and assist with the ordering process.
