Aluminum PV Wire Ampacity and Voltage Drop: How to Size It Correctly
- Bouzy
- 6 hours ago
- 8 min read
Sizing aluminum PV wire correctly is not about chasing one ampacity number. The right method is to calculate the PV circuit current first, size the conductor to meet NEC Article 690 requirements, apply any correction or adjustment factors, and then check voltage drop over the actual run length.
That matters because PV conductors are often installed in hot, sun-exposed environments where temperature can erode usable ampacity, while long DC runs can make voltage drop the real design constraint. Modern PV wire products are commonly listed as 90°C wet or dry, sunlight resistant, and often direct burial, but those product ratings do not replace proper conductor sizing.
The Short Answer
Featured-snippet-ready answer:
To size aluminum PV wire correctly, start with the PV circuit current required by NEC 690.8, select a conductor with enough ampacity before and after any required correction or adjustment, and then verify that voltage drop is acceptable for the actual run length.
PV conductors are often rated 90°C wet or dry and listed to UL 4703, but actual usable ampacity can still be reduced by temperature and installation conditions. Voltage drop should be checked separately because a conductor can satisfy ampacity rules and still be undersized for long-run system performance.
Key Takeaways
Correct PV wire sizing is a process, not a table lookup. You need current, ampacity, correction factors, and voltage drop—not just gauge size.
NEC-oriented PV guidance summarized by EC&M says PV circuit conductors must have ampacity at least equal to the larger of 690.8(B)(1) or 690.8(B)(2), which means you must consider current requirements both before and after correction or adjustment.
PV wire products used in solar applications are commonly rated 90°C wet or dry, sunlight resistant, and often direct burial under PV-related listings and constructions.
Aluminum PV products do exist in the U.S. market, including 600V and 2000V offerings from major cable suppliers.
Voltage drop deserves its own check. Southwire and Cerrowire both provide separate voltage-drop tools because conductor sizing is not fully resolved by NEC ampacity alone.
What Aluminum PV Wire Ampacity Really Means
Ampacity is the amount of current a conductor can carry continuously under stated conditions without exceeding its temperature rating. In PV work, that definition matters more than usual because the conductors are often exposed to harsh environmental conditions and continuous output characteristics. EC&M’s NEC coverage emphasizes that PV conductor sizing is tied directly to the current calculation rules in 690.8 and that ampacity must be checked both before and after correction or adjustment.
That is why “aluminum PV wire ampacity” is not one fixed number. It depends on:
the circuit current you are serving
the conductor’s temperature rating
the installation environment
any required adjustment or correction factors
the length of the run, because voltage drop may drive upsizing even when ampacity is adequate.
What Makes PV Wire Different From General Building Wire
UL 4703 and PV wire ratings
UL notes that UL 4703 is the key standard for PV wire and highlights its superior sunlight resistance for photovoltaic applications. UL also notes that module interconnection wiring may need to be sunlight resistant and rated for wet locations at 90°C or above, which helps explain why PV wire is specified differently from ordinary building wire in solar installations.
Southwire’s current PV wire literature shows typical product marking such as PV Wire, 2000V, 90°C wet or dry, -40°C, sunlight resistant, direct burial. Service Wire and Priority Wire publish similar product characteristics for PV cable families used in solar applications.

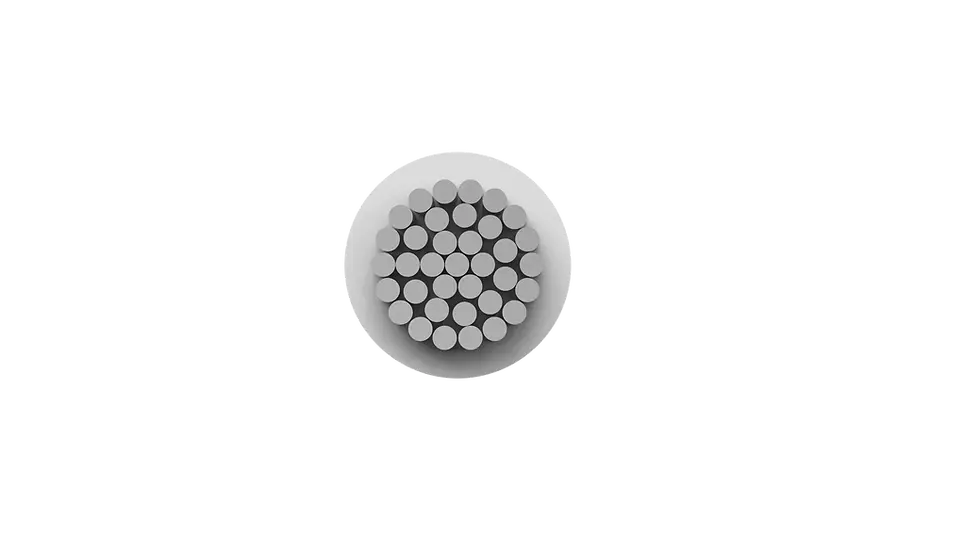

Typical aluminum PV wire construction and use cases
Aluminum PV conductors are not hypothetical niche products. Southwire lists compact aluminum alloy PV cable products rated 2000V, 90°C wet or dry, sunlight resistant, and direct burial, approved for solar power applications under NEC Article 690. Priority Wire lists aluminum 600V photovoltaic cable suitable for grounded and ungrounded PV systems from -40°C to +90°C wet or dry.
That makes aluminum a relevant option for larger PV projects where conductor economics, availability, and installation strategy matter. The key is not whether aluminum exists for PV use. The key is whether the specific listed product and installation conditions support the design.
The Right Way to Size Aluminum PV Wire
Step 1: Calculate PV circuit current
Begin with the PV circuit current required by NEC 690.8. EC&M’s NEC summaries state that conductor sizing for PV source, output, and inverter output circuits starts with the current determined under 690.8(A), and that conductors must then satisfy the larger of the sizing rules in 690.8(B)(1) and 690.8(B)(2).
This is the first place weak articles go wrong. They jump to wire size before resolving the design current.
Step 2: Choose a conductor with enough ampacity
Once you know the PV circuit current, choose an aluminum conductor whose ampacity meets the required threshold. Service Wire’s published PV ampacity table for one of its PV cable families shows just how wide the range can be: for example, 8 AWG is listed at 80A, 4 AWG at 140A, 1/0 at 260A, and 4/0 at 405A based on 30°C ambient and its product/table basis. That is a reminder that manufacturer data tables can vary by product family and must be read in context rather than copied blindly.
The editorial point is simple: use the correct ampacity basis for the actual conductor product and installation, not a generic internet chart.
Step 3: Apply temperature correction and adjustment
EC&M’s NEC examples make clear that PV conductor sizing must account for correction and adjustment factors after the initial current calculation. One example shows a rooftop PV circuit where the ambient plus rooftop temperature adder leads to a 0.58 temperature-correction factor, materially reducing usable conductor ampacity. Another summary states that conductors must meet 125% of the 690.8(A) current before correction/adjustment and 100% of the calculated maximum circuit current after correction/adjustment.
This is why hot-site PV designs often need larger conductors than a simple nameplate-current estimate would suggest.
Step 4: Check voltage drop
After ampacity is confirmed, check voltage drop over the actual one-way run length. Southwire’s voltage-drop calculator explicitly states that conductor sizing is limited by both voltage drop and NEC ampacity. Cerrowire’s calculator and guidance make the same point from another angle: choose conductor material, size, voltage, length, and load, and then verify the resulting drop.
In practical terms, this means a conductor can be legally large enough on ampacity and still be the wrong size for a long string homerun, combiner output, or inverter DC run if the voltage drop is excessive.
Step 5: Confirm listing, voltage rating, and installation method
Finally, confirm that the exact cable is listed and rated for the job. PV wire products in the U.S. market are offered in 600V, 1000V, and 2000V classes, and suppliers publish different constructions and use cases. UL and manufacturer materials consistently emphasize that the right cable must match the installation method and environment, including sunlight exposure, wet-location rating, direct burial where applicable, and the relevant voltage class.
Why Voltage Drop Changes the Answer
Voltage drop is where many otherwise adequate conductor choices fail a real design review. Ampacity tells you whether the conductor can carry the current safely. Voltage drop tells you whether it can do so efficiently over distance. Southwire’s calculator language is especially useful here because it states the issue plainly: conductor sizing is constrained by both voltage drop and NEC ampacity.
For PV systems, that matters because DC runs can be long, and the system may operate continuously near design conditions. Even when code minimum ampacity is satisfied, designers often upsize conductors to manage performance losses over longer distances. Cerrowire’s voltage-drop resources reinforce that this is a separate design check, not an optional afterthought.
Common Mistakes in Aluminum PV Wire Sizing
Using a generic wire chart instead of the actual PV current calculation.
PV conductor sizing starts with 690.8, not with a guess based on module wattage or a random amp chart.
Ignoring temperature correction.
PV conductors often run in hotter conditions than ordinary branch circuits. EC&M’s examples show how temperature correction can sharply reduce usable ampacity.
Stopping after the ampacity check.
Voltage drop can still require upsizing after ampacity looks acceptable. Southwire and Cerrowire both treat voltage drop as a distinct sizing constraint.
Assuming any aluminum cable is suitable for PV use.
The cable must be the right listed product for the job, with the correct PV/solar construction, voltage rating, and environmental suitability.
Treating manufacturer ampacity values as universally interchangeable.Published tables vary by product family, conductor construction, and reference conditions. Always read the notes and product basis.
When Aluminum PV Wire Makes Sense
Aluminum PV wire makes the most sense when the project is large enough for conductor economics and system architecture to justify it, and when the exact listed aluminum PV product fits the voltage class, installation method, and environmental conditions. Current U.S. market offerings from Southwire and Priority Wire show that aluminum PV cable is available for solar use in 600V and 2000V classes, with 90°C wet/dry ratings and sunlight resistance.
That does not mean aluminum is automatically the better option. It means it is a legitimate option when specified correctly.
Final Sizing Takeaway
The best way to size aluminum PV wire is to think in sequence, not shortcuts:
Calculate PV circuit current under NEC 690.8.
Select a listed aluminum PV conductor with enough ampacity.
Apply required correction and adjustment factors.
Check voltage drop over the actual run.
Verify voltage rating, listing, and installation suitability.
That is the real answer to “how to size aluminum PV wire correctly.” Not a single chart. Not a single rule of thumb. A disciplined sizing process.
Soft CTA:If you are specifying aluminum PV cable for U.S. solar projects, build the decision around the real circuit current, environment, and run length—not just the nominal wire size. That is how you get a design that is both code-aligned and performance-aware.
FAQ Section
1. What is aluminum PV wire ampacity?
Aluminum PV wire ampacity is the amount of current the conductor can carry continuously under its stated installation conditions without exceeding its temperature rating. In PV systems, that ampacity must be evaluated alongside NEC 690.8 current calculations and any applicable correction or adjustment factors.
2. How do you size aluminum PV wire correctly?
Start with the PV circuit current, then choose a conductor with enough ampacity, apply correction and adjustment factors, and finally check voltage drop. That sequence is more accurate than picking a conductor size from a generic table alone.
3. Is aluminum PV wire available in the U.S. market?
Yes. Current supplier literature shows aluminum PV products in the U.S. market, including 600V and 2000V offerings for solar applications.
4. Is PV wire usually rated for wet and dry locations?
Yes. Current PV wire product literature commonly shows 90°C wet or dry ratings, along with sunlight resistance and, in many products, direct-burial suitability.
5. Does voltage drop matter if ampacity is already adequate?
Yes. Ampacity and voltage drop are separate checks. Southwire and Cerrowire both provide dedicated voltage-drop tools because a conductor can satisfy ampacity rules and still be undersized for a long run.
6. Can I use a standard building-wire ampacity chart for PV wire sizing?
Not by itself. PV conductor sizing starts with the PV-specific current rules and installation conditions, then uses the correct conductor/product data and any required correction factors.
